Custom Commercial Inflatable Water Parks with Pools
Custom flat-ground inflatable water park systems with pools, themed slides and seasonal setup flexibility.
Custom commercial inflatable water parks with built-in pools, themed slides and splash play zones for rental companies, campsites, resorts and summer events. Designed for flat-ground operation with project-based sizing, blower setup and anchoring options.

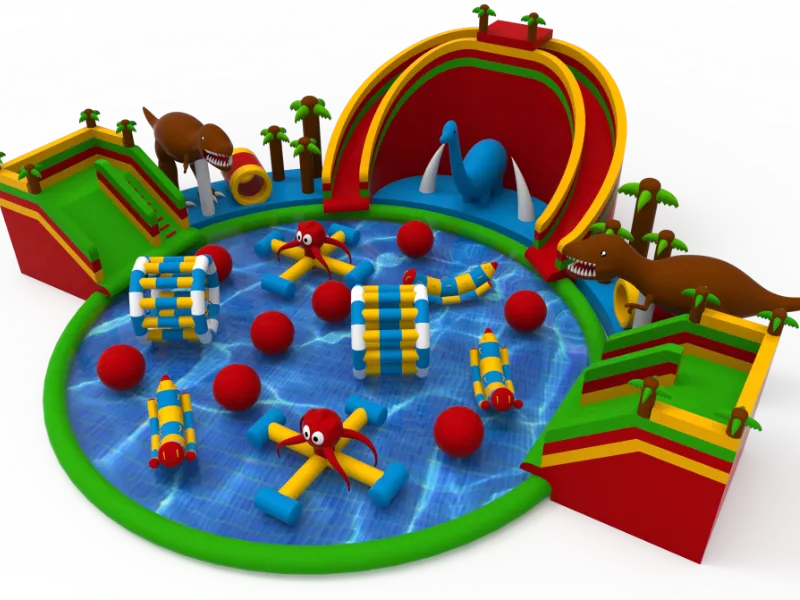

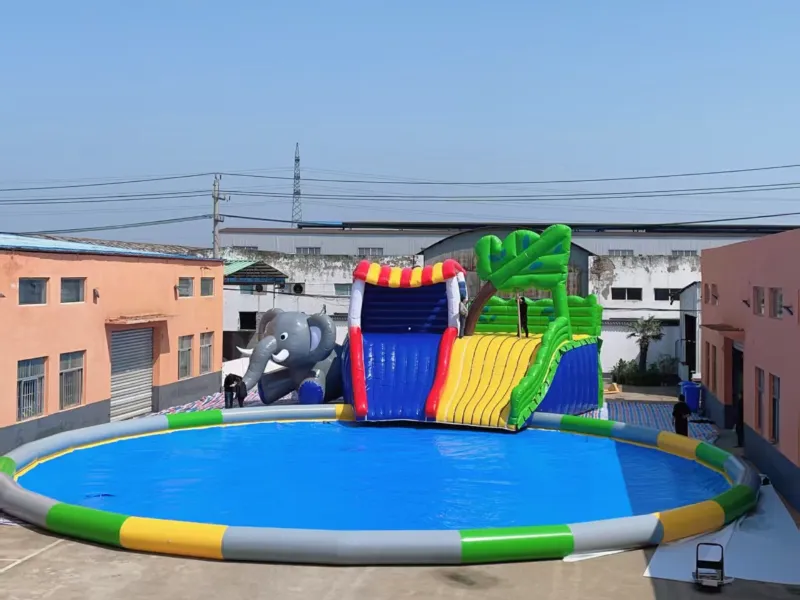

Custom Inflatable Water Park System with Built-In Pools
Flat-Ground Setup for Rental, Campsite and Resort Operation
Project-Based Layouts with Slides, Themes and Splash Play Zones

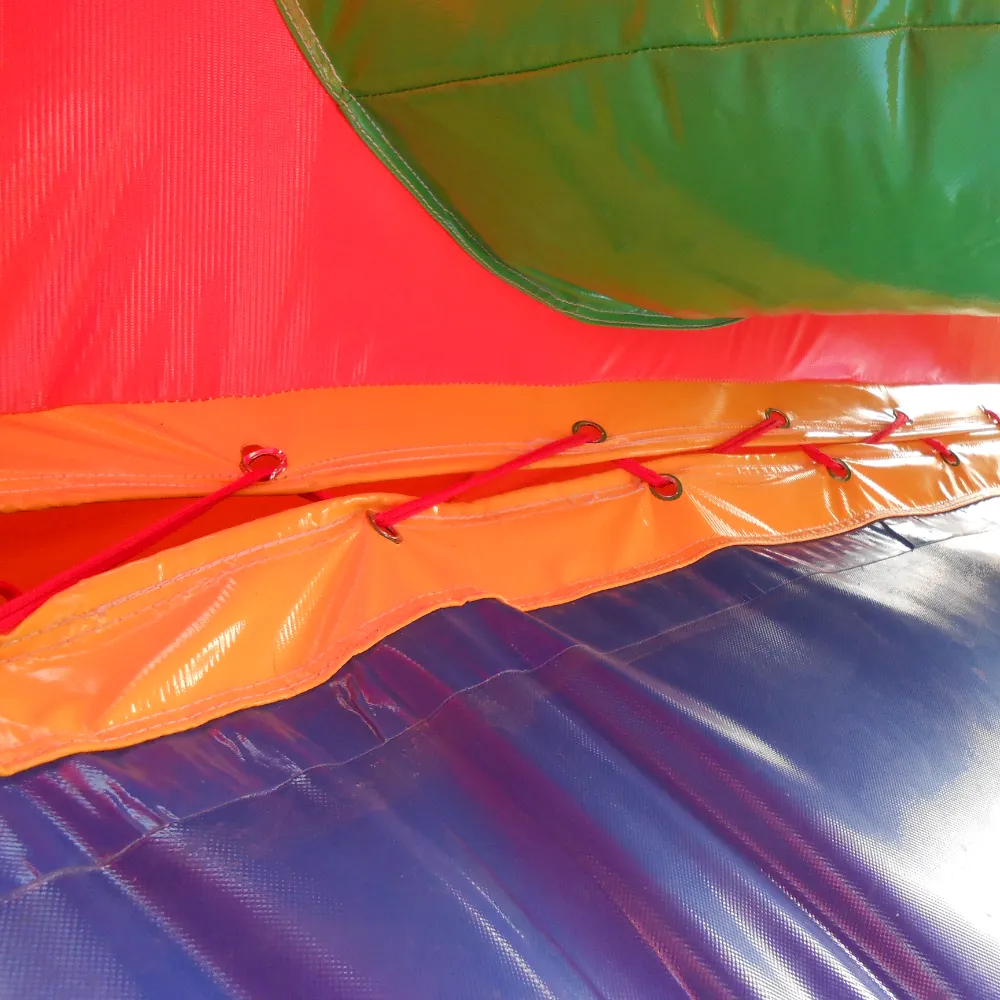

Commercial PVC Construction with Reinforced Wear Areas
Blower, Anchoring and Safety-Aware Setup Options
Specifications & Parameters
Detailed technical data and product parameters to help you plan your installation.
Technical Specifications
| Product Type | Custom commercial inflatable water park with built-in pools |
| Application | Rental companies, campsites, resorts, outdoor events, seasonal parks and distributors |

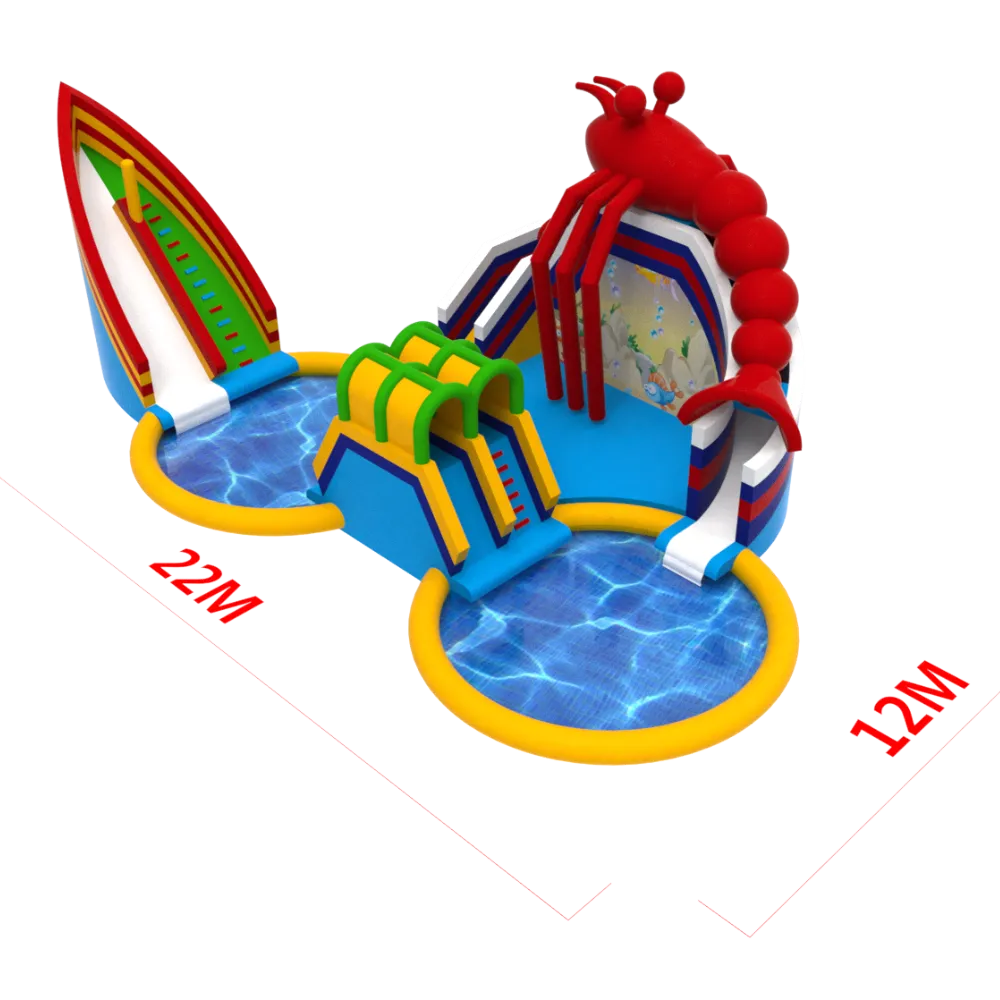

| Reference Size | 22 m × 12 m / 72 ft × 39 ft, with approx. 10 m / 33 ft maximum slide height |
| Custom Project Area | Common commercial projects range from 500-1,500 m² / 5,380-16,145 ft² |
| Minimum Suggested Site Area | From 300 m² / 3,230 ft², including safe clearance and operating space |
| Pool System | Fully inflatable pools, customized by quantity, layout, depth and play function |
| Typical Pool Depth | Shallow splash-pool design, often around 20-40 cm / 8-16 in depending on age group |

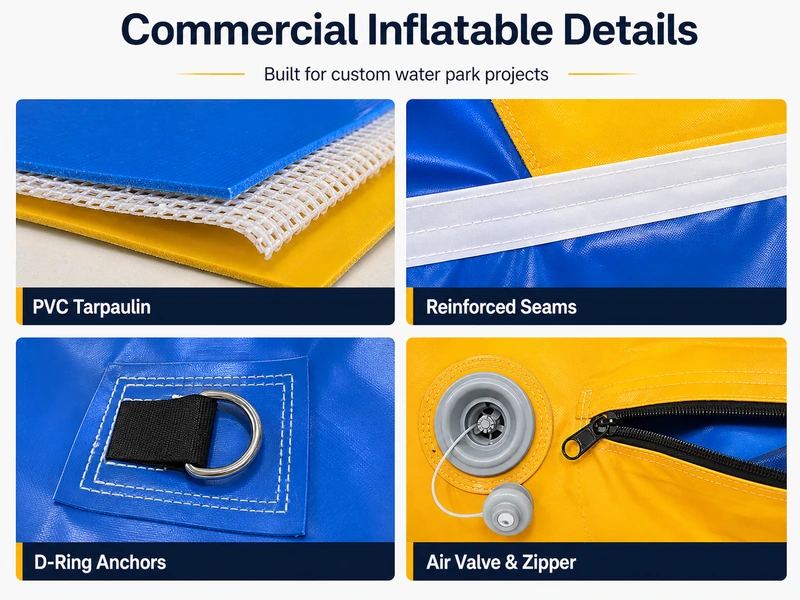

| Main Materials | Commercial PVC tarpaulin, with material thickness selected by structure, budget and operation level |
| PVC Supplier | Sijia PVC tarpaulin, a listed Chinese material supplier widely used in the inflatable industry |
| Structure & Craft | Continuous-air inflatable slides and themed structures, with welded pool sections and reinforced wear areas |

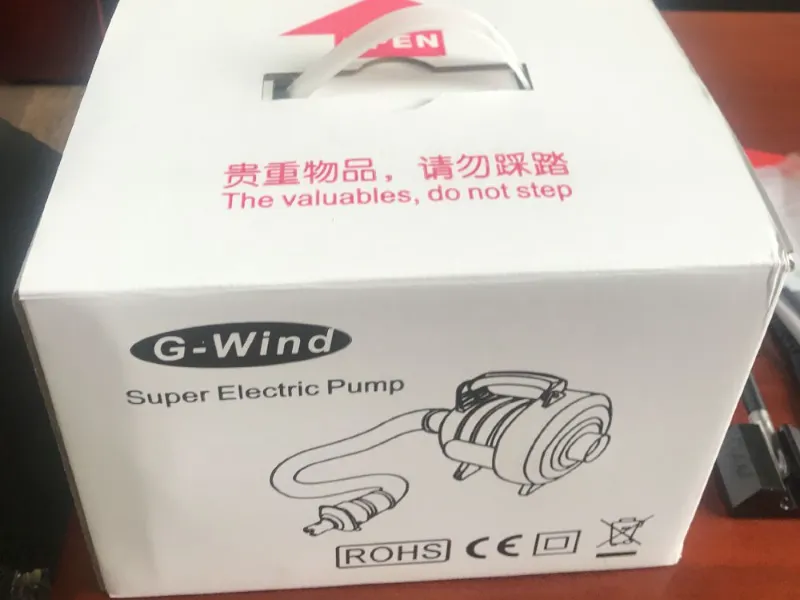

| Blower Setup | Typically 4-7 blowers for a 22 m × 12 m project; final quantity depends on size and modules |
| Voltage Options | 110V / 220V / 380V available according to destination market and plug standard |

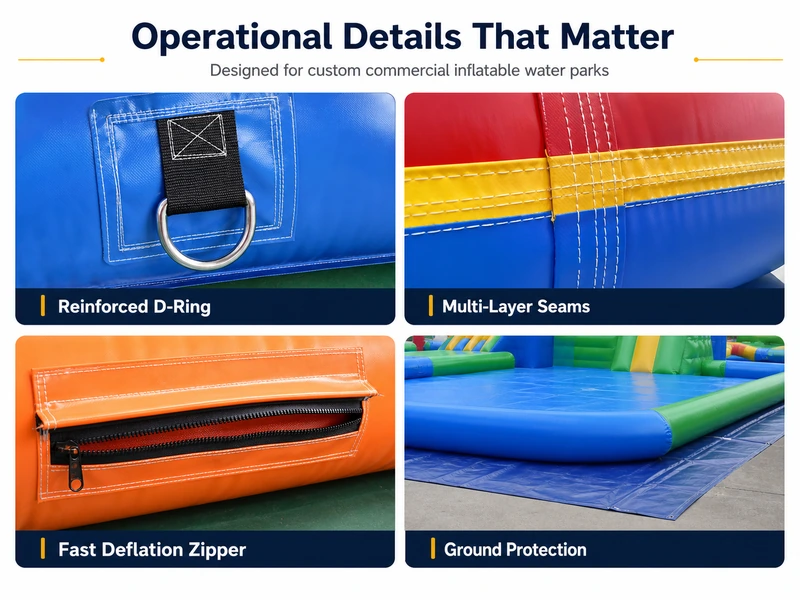

| Ground & Anchoring | Ground protection sheet, D-rings, anchor points, ballast or stake options based on site surface |
| Wind Operation Limit | Outdoor operation should stop in strong wind conditions; Force 5 / 24 mph is commonly used as a safety reference |
| Setup Time | About 2-3 hours for first setup with 4-5 workers; faster after the team is familiar with the system |

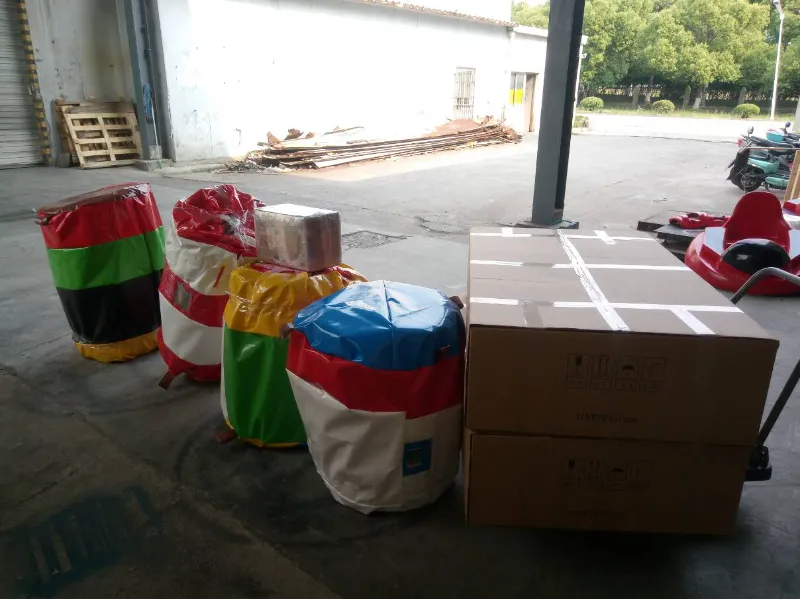

| Packing Reference | A 22 m × 12 m set is approx. 600-850 kg / 1,320-1,870 lbs and 4.5-6.0 CBM, excluding pumps and blowers |
| Custom Options | Size, theme, colors, pool layout, slide height, play zones, logo printing, accessories and 3D concept design |
| Warranty | 1 year against manufacturing defects; excludes misuse, sharp-object damage, wrong installation and strong-wind operation |
Frequently Asked Questions
Quick answers to the most common questions about this product.
- A custom commercial inflatable water park with pools is a removable flat-ground water attraction made from commercial PVC tarpaulin. It combines inflatable pools, water slides, themed structures, splash zones and optional play modules into one project-based system for rental, campsite, resort and seasonal event operation.
- No. This product is designed for flat-ground operation with built-in inflatable pools. A floating inflatable aqua park is installed directly on lakes, beaches or open water. If your project needs its own water area without permanent civil construction, this inflatable water park with pools is the more suitable category.
- For serious commercial use, we usually suggest planning from 300 m² / 3,230 ft² upward. Smaller spaces often limit slide height, pool capacity, visitor movement and safety clearance. Most standard commercial projects are around 500-1,500 m² / 5,380-16,145 ft², depending on the target capacity and play zones.

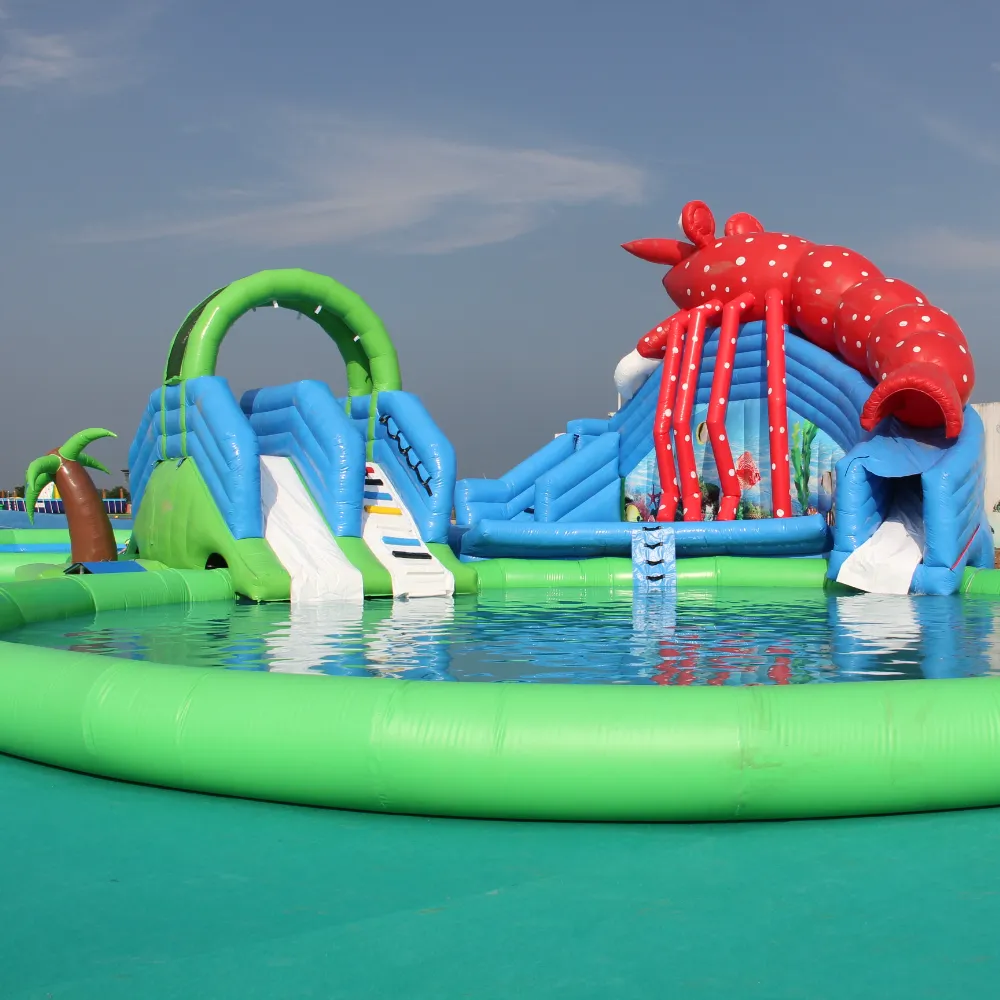

- Yes. The number of pools, slide height, slide lanes, climbing access, splash areas, obstacle elements, colors, graphic style and logo placement can be customized. The lobster theme is only one example; buyers can send project concepts, reference photos, site dimensions or branding requirements for a project-based layout.
- There is no fixed price because every commercial inflatable water park is quoted by project. Size, pool area, slide height, PVC thickness, theme complexity, blower quantity, water treatment accessories, packing volume and destination all affect cost. A project-based quote prevents under-specification and avoids misleading low prices.
- A flat, clean and stable surface is required. Concrete, asphalt and indoor floors are usually suitable. Grass can also be used when proper ground protection is added. Sharp stones, roots, loose soil and obvious slopes should be avoided because they increase wear, anchoring risk and uneven water load.

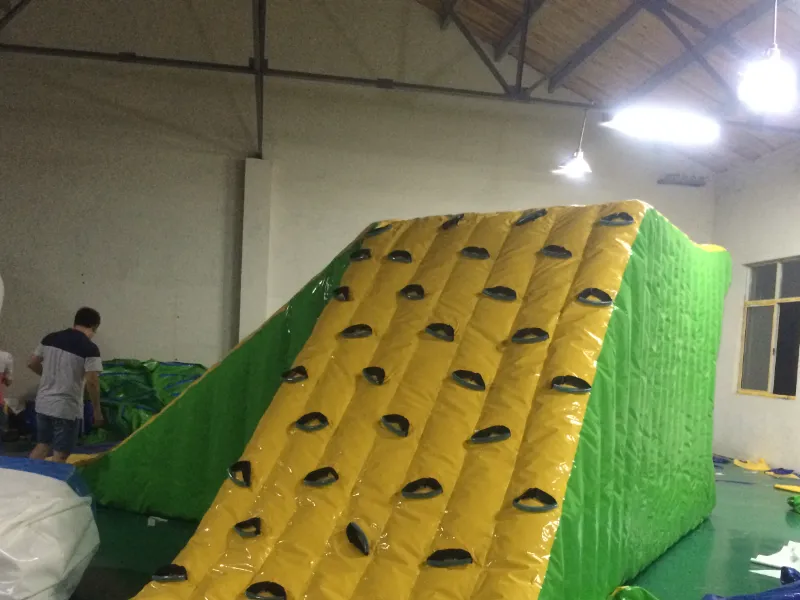

- The design uses shallow splash-pool depths, reinforced high-wear areas, D-rings, anchor points, anti-slip climbing surfaces and blower-based structure support. For outdoor operation, wind conditions must be monitored, and strong-wind operation should stop according to the product manual and local safety requirements.
- For seasonal commercial operation, a filtration and water circulation setup is strongly recommended. QIQU can help match pumps, sand filters and related water system accessories according to pool volume and expected traffic. Water treatment practices should also follow local health and operating requirements.
- Yes, it is suitable for 2-4 months of seasonal operation when the site, anchoring, water treatment, cleaning and daily inspection are managed properly. For long-season use, buyers should consider upgraded PVC selection, reinforced wear areas, reliable blowers and replacement parts for high-traffic zones.
- Please include your country, site size, ground type, target age group, expected visitor capacity, preferred theme, number of pools, slide height preference, required accessories, target opening date and whether you need 3D concept design. Reference photos are helpful because they show the style and play functions you want.
