Custom Floating Inflatable Water Parks for Lakes, Resorts and Frame Pools

A Floating Aqua Park System for Real Commercial Water Areas

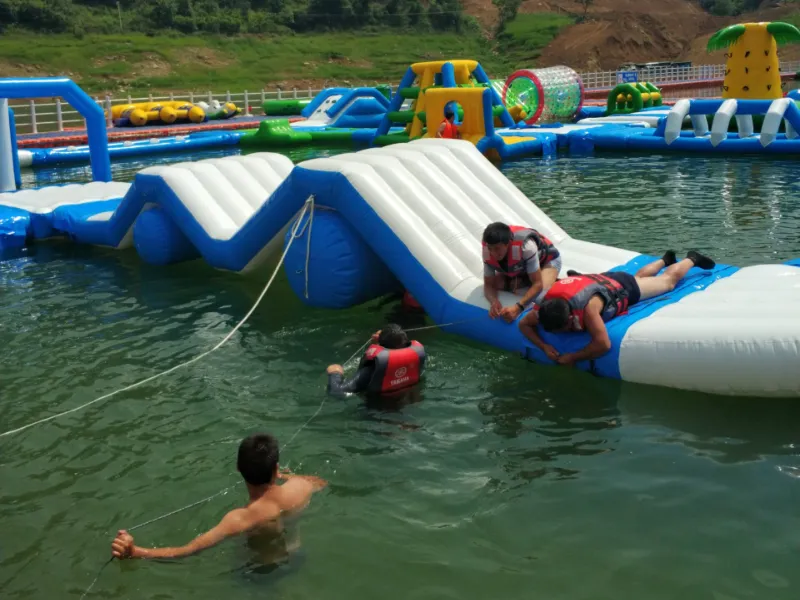

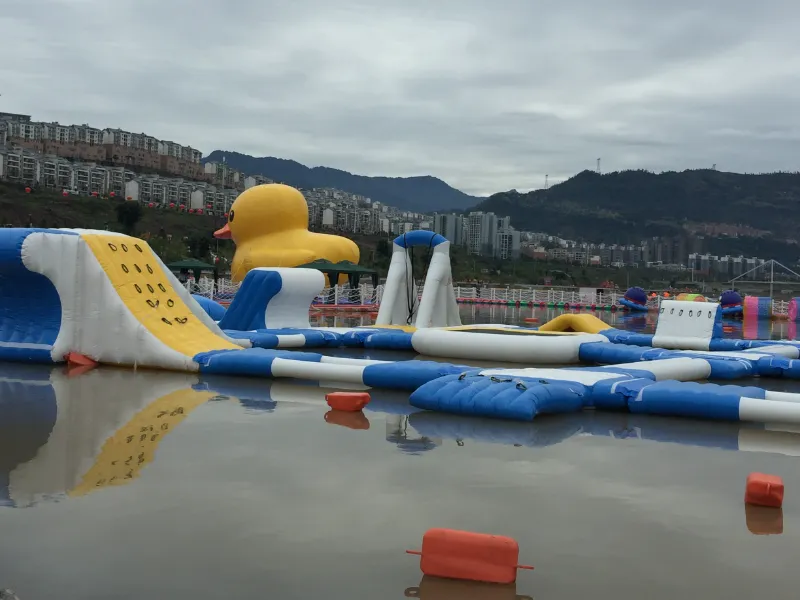

On-site installation photo from our Enshi, Hubei client project on June 25, 2019, showing QIQU floating inflatable water park modules being assembled and tested in a real commercial water area.

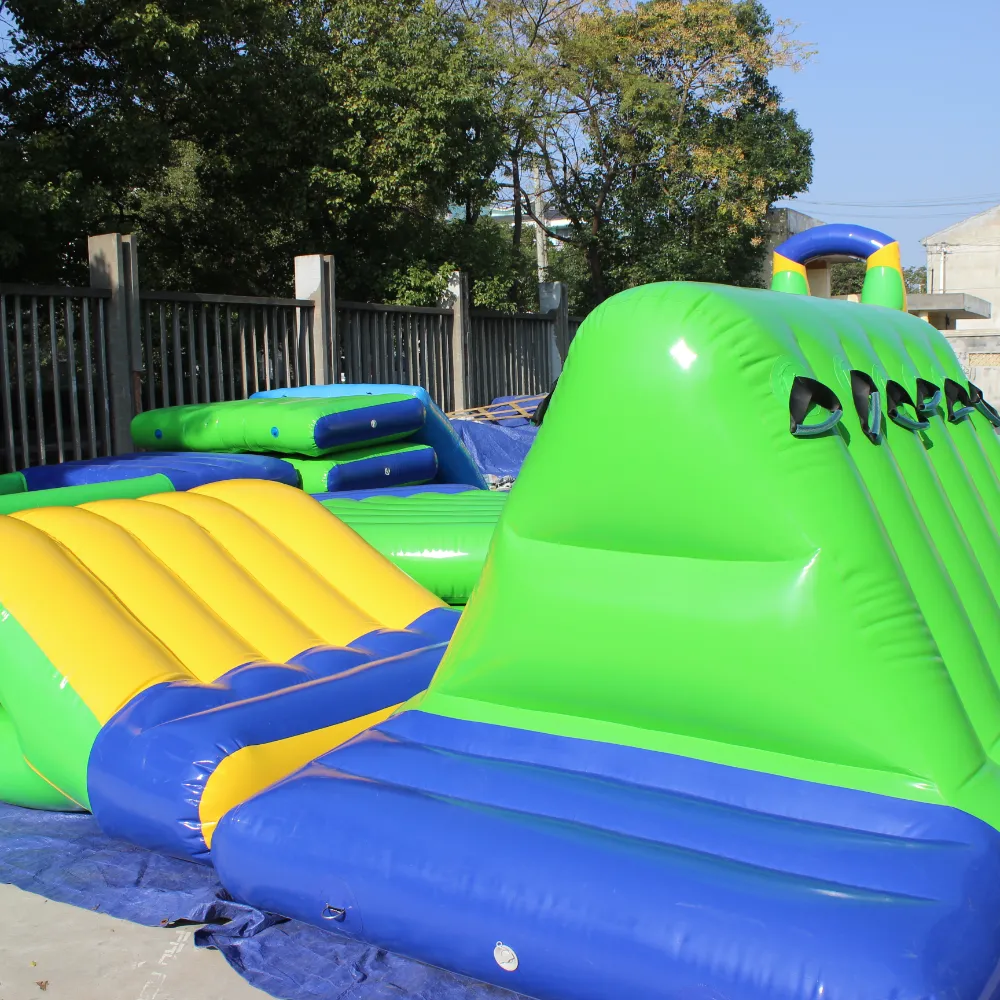

QIQU custom floating inflatable water parks are built for operators who already have a usable water area, or who want to create one with a support-frame pool. The system is made from closed-air inflatable modules such as slides, climbing obstacles, balance bridges, floating platforms, trampolines and challenge elements.

Unlike flat-ground inflatable water parks with built-in pools, this product is designed to float on water. It is a better fit for lakes, artificial lakes, resort water zones, calm inland water, support-frame pools and selected calm nearshore projects.

Each layout is designed around the buyer’s water area, target age group, operating capacity, module difficulty and site conditions. The goal is not to sell a single standard model, but to help buyers build a commercial floating aqua park that can hold attention, increase visitor stay time and support seasonal revenue.

Designed Around Your Water Area, Not a Fixed Catalog Layout

A floating inflatable aqua park only works well when the layout matches the actual site. Water depth, route length, entry and exit points, lifeguard visibility, anchoring direction and visitor flow all affect the final design.

QIQU can design small, medium and large layouts for different operating goals:

• Small layouts for support-frame pools, campsites and compact resort water zones
• Medium obstacle course systems for commercial water parks and event operators
• Large floating aqua park projects for lakes, tourism groups and high-capacity seasonal attractions

Common layouts may use 8-20 modules for a basic commercial setup, 20-50 modules for a standard water obstacle course, and 50+ modules for large aqua park projects. The final configuration can be adjusted by site size, budget, visitor age and operating model.

For Buyers Without a Natural Water Area

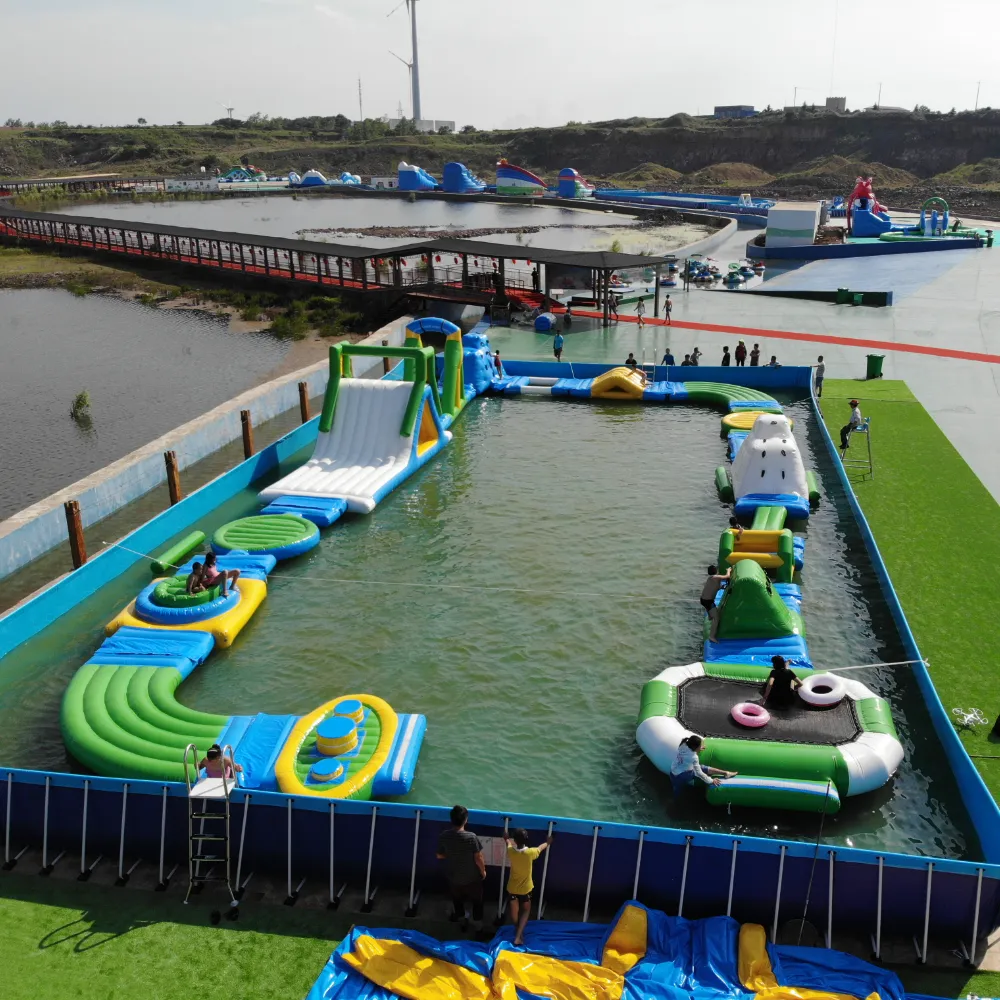

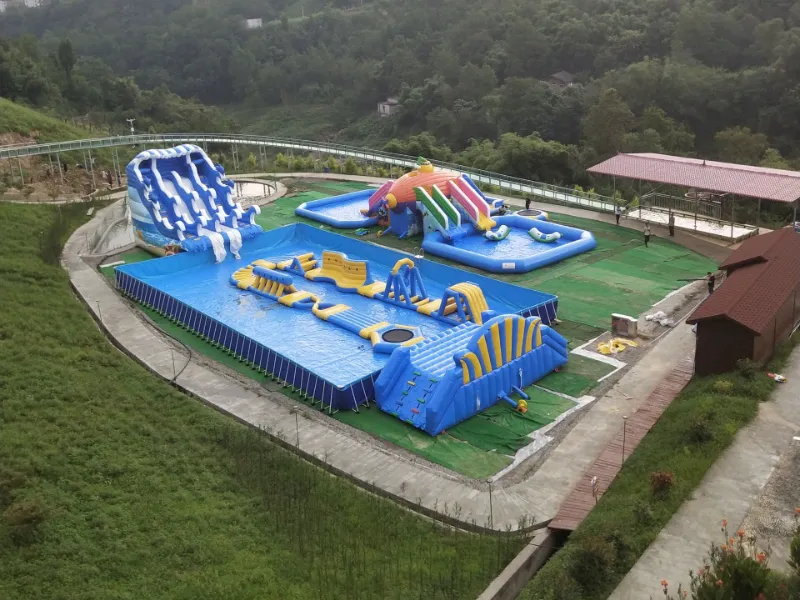

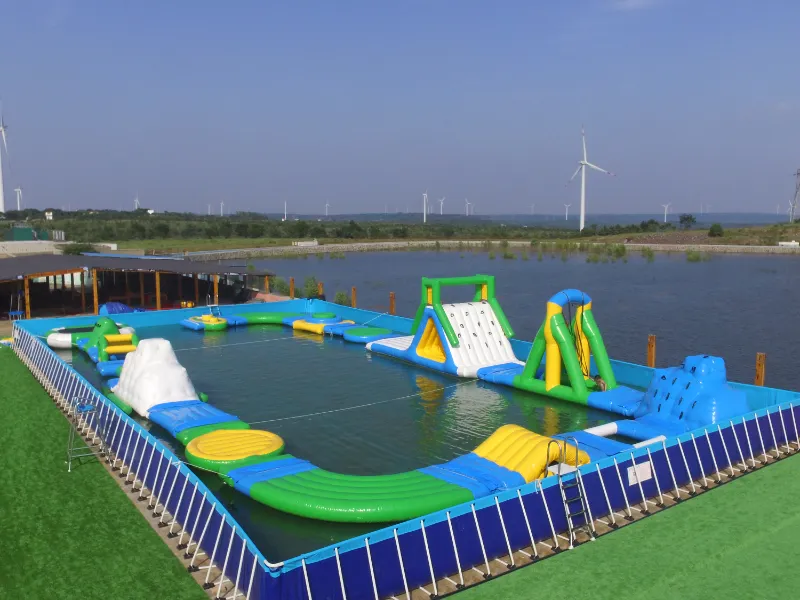

Some buyers do not have a lake, artificial lake or resort water zone. In that case, QIQU can pair floating inflatable aqua park modules with a custom support-frame pool.

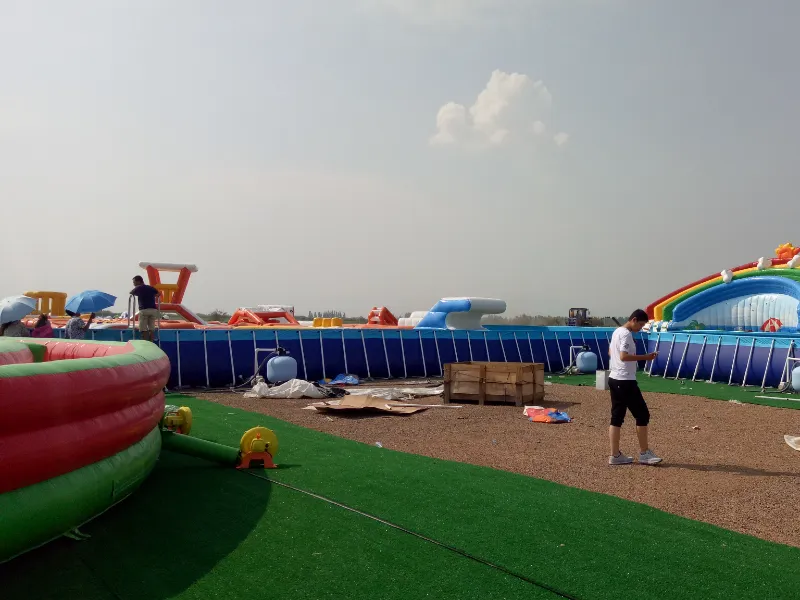

A support-frame pool is often a better match for floating obstacle modules than a shallow inflatable pool. It provides a firmer pool wall, more stable water depth and better space utilization for commercial obstacle course layouts. Common support-frame pool depths include 0.8 m, 1.0 m, 1.2 m and 1.5 m, with 1.5 m usually treated as the recommended upper limit.

For these projects, QIQU can help plan the floating modules, support-frame pool, filtration system, inlet and outlet setup, and layout design as one project package.

Custom Modules for Different Age Groups and Difficulty Levels

This product can be designed for families, children, teenagers, young adults, team-building events and commercial water park visitors. The module mix should match the users.

For younger children and family users, the layout can focus on floating bridges, low slides, balance modules, soft climbing areas and simple challenge routes.

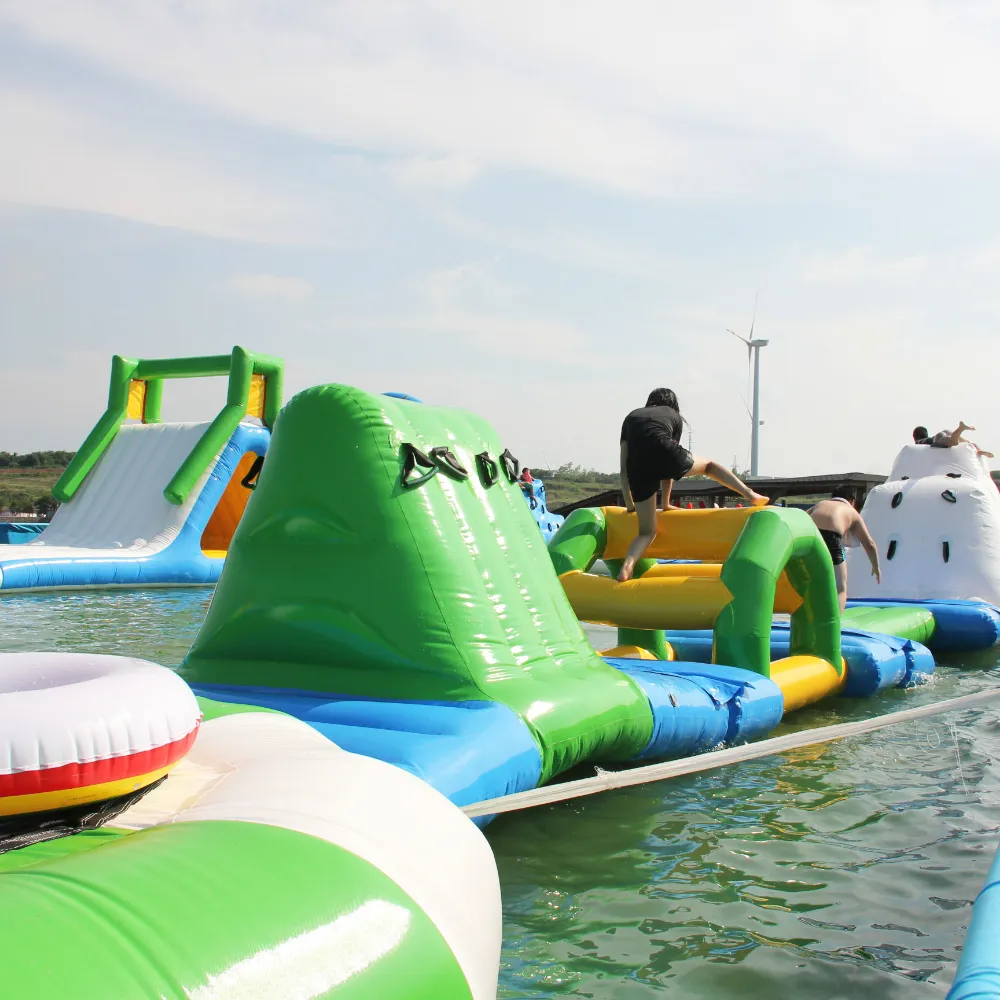

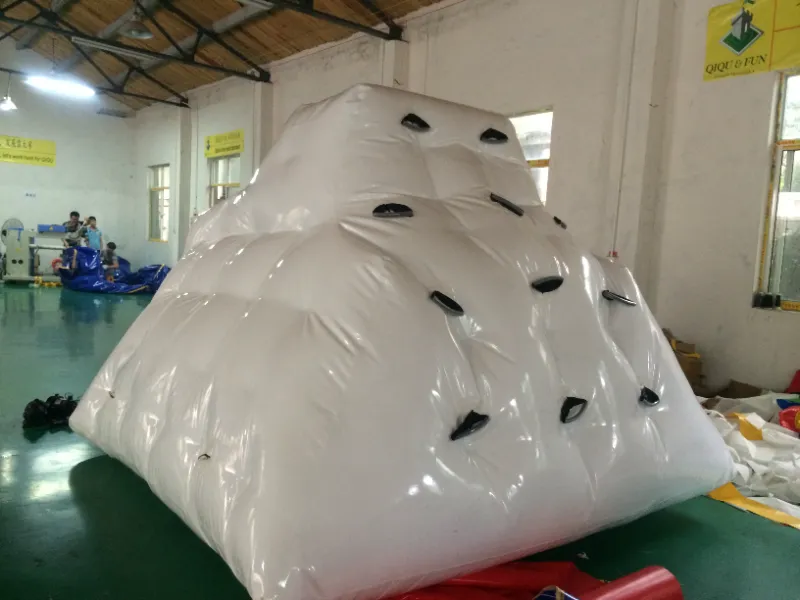

For older children, teenagers and adults, the course can include higher difficulty zones such as climbing mountains, larger slides, obstacle bridges, floating platforms and competitive routes.

High-risk modules such as large jumping platforms, blob-style launch bags or high trampolines require deeper water and are not recommended for support-frame pools. They should only be considered for suitable natural deep-water areas after site evaluation.

Closed-Air Construction for Water-Based Operation

These modules are closed-air inflatable products. After proper inflation, they do not need continuous blowers during operation. Operators only need to check air pressure before opening and add air when needed, especially after temperature changes between day and night.

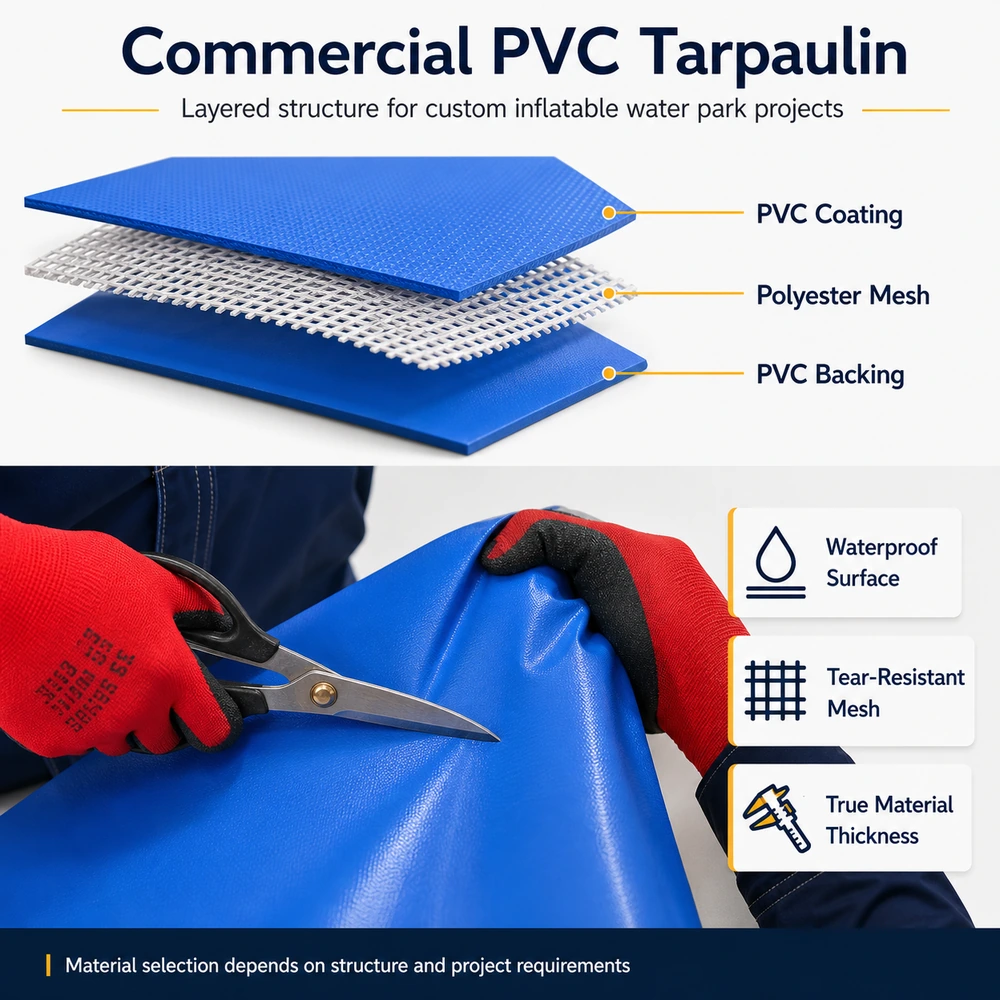

The standard material is 0.9 mm commercial PVC tarpaulin, with thicker options available for special project requirements. Each module can use independent air chambers with separate valves, helping improve floating stability and maintenance control.

QIQU uses Sijia PVC tarpaulin, a listed Chinese material supplier widely used in the inflatable industry. Module details can include anti-slip surfaces, handles, D-rings, webbing straps, heavy-duty connectors, anchoring points and reinforced high-stress areas.

Anchoring and Site Conditions Matter

A floating water obstacle course is not just a group of inflatable modules placed on water. The anchoring system is critical to operating stability.

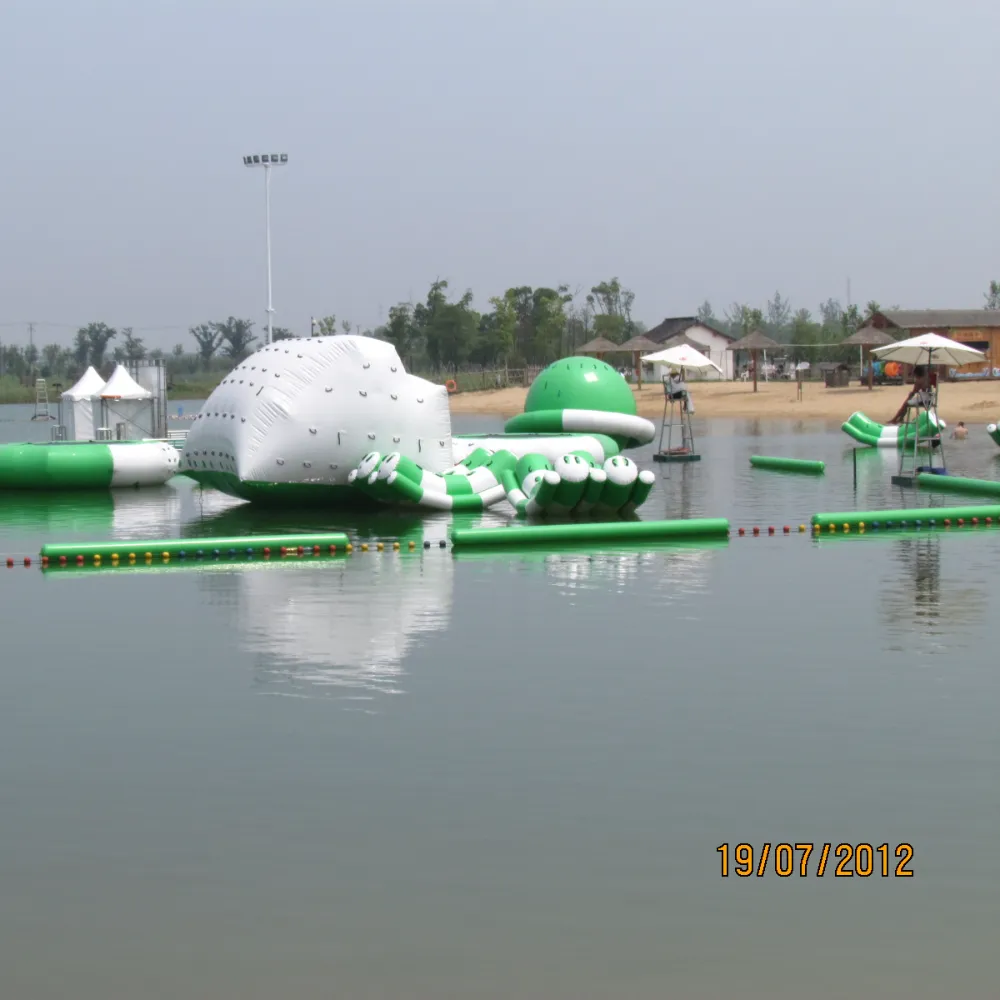

For natural water areas, anchoring usually requires bottom anchors or local counterweights, shore lines, elastic buffer ropes and multi-point positioning. For support-frame pools, the main fixing points are usually connected to the pool’s steel support frame, with local bottom counterweights used only when needed.

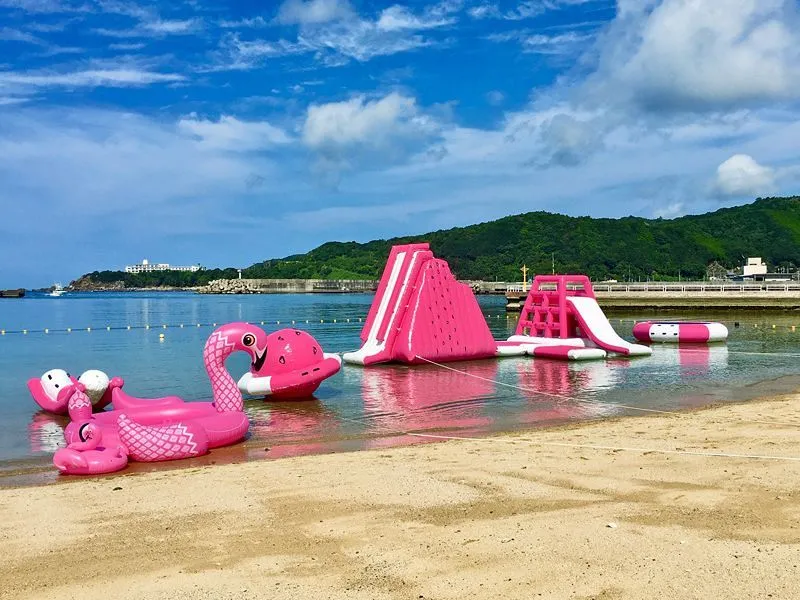

This product is not recommended for fast-flowing rivers, strong tides, open sea, rough water or boat traffic areas. Calm nearshore water may be possible, but the site should be reviewed carefully before confirming the layout.

Built for Operators, Distributors and Project Buyers

Floating inflatable water parks are suitable for different B2B buyers:

• Lake water park operators who want a high-participation summer attraction
• Resorts and campsites that need to activate underused water areas
• Event and rental companies that need modular water obstacle systems
• Distributors and dealers looking for OEM/ODM inflatable aqua park products
• Municipal and tourism groups developing seasonal public water activities

For distributors, QIQU supports custom colors, module selection, branding, FCL shipment planning, bulk purchasing and long-term replacement parts. For project buyers, QIQU can support layout design, module numbering, anchoring guidance, video installation support and accessory matching.

Project Workflow

A typical custom floating inflatable water park project follows this process:

1. Confirm the water area, country, target users and operating season.
2. Review water depth, site condition, installation environment and safety boundary.
3. Select the module type, route length, difficulty level and project scale.
4. Confirm whether a support-frame pool, filtration system or extra accessories are required.

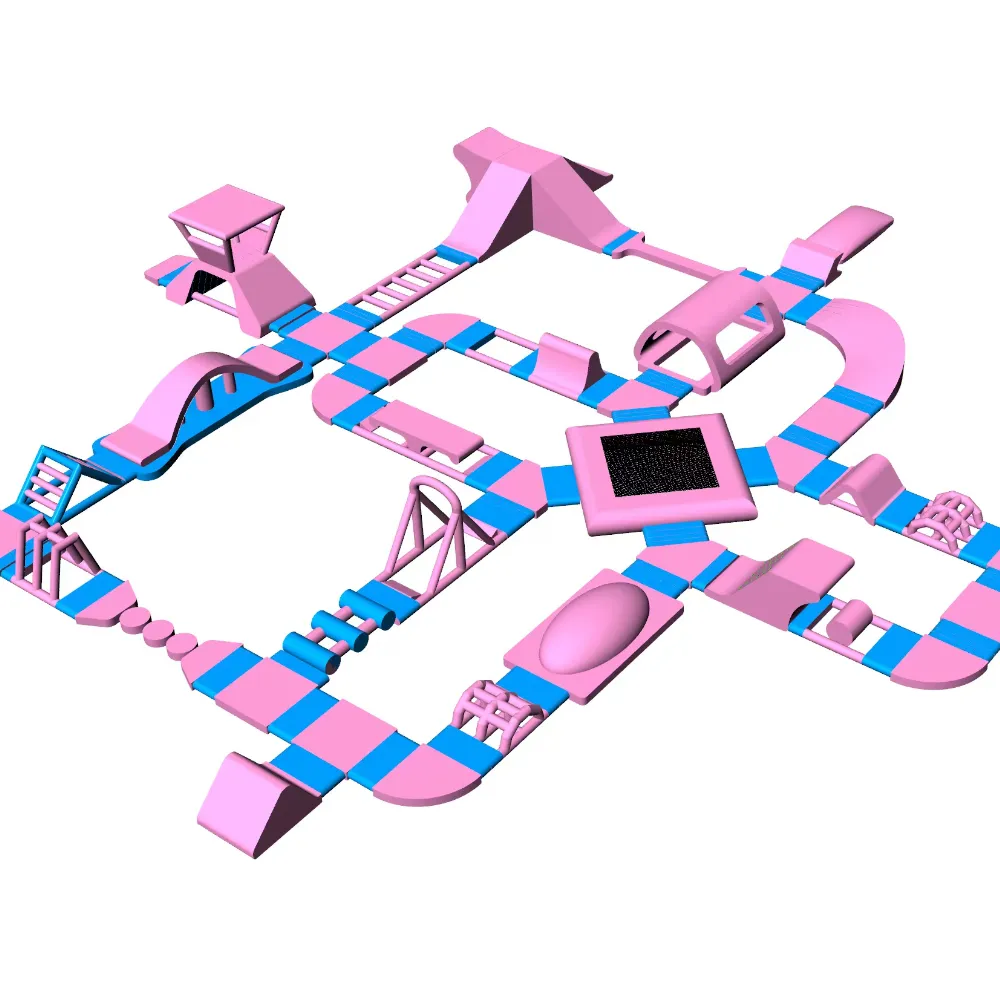

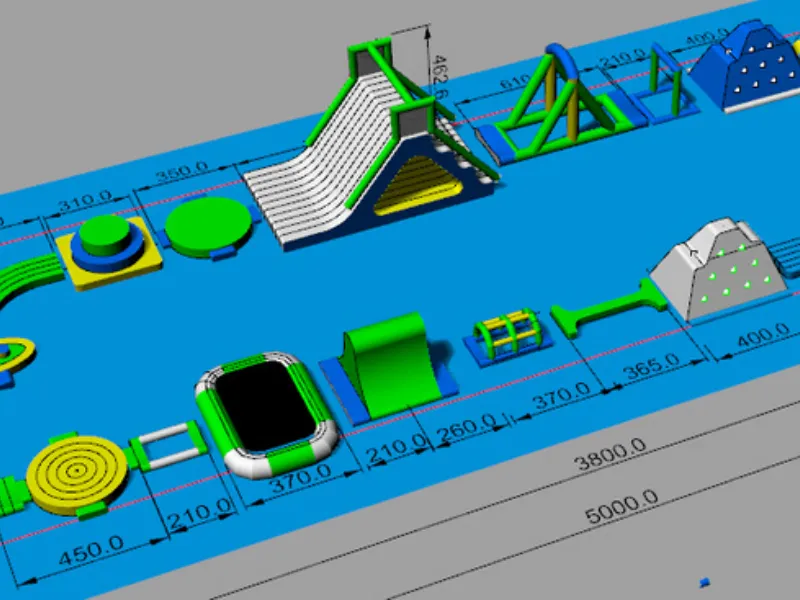

5. Prepare quotation and optional 3D layout design.

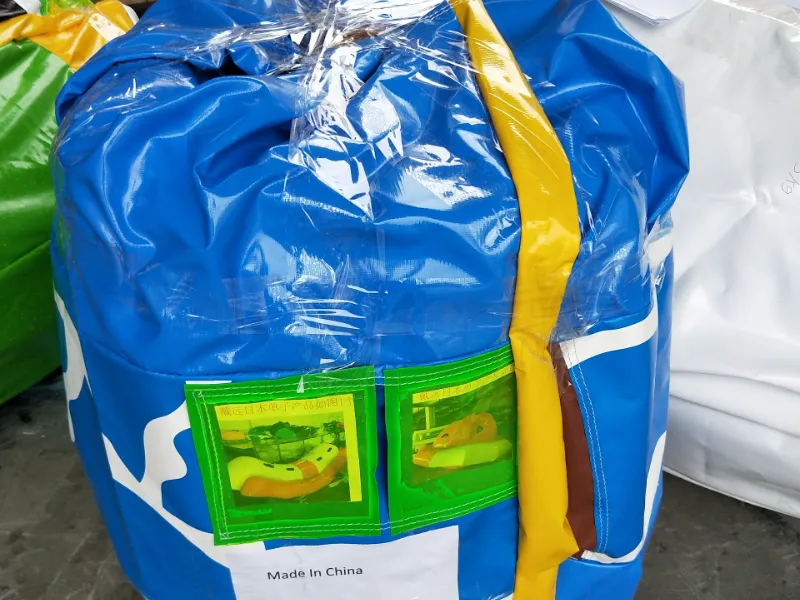

6. Produce the modules, inspect before shipment and pack by module number.
7. Ship by LCL or FCL depending on project size.
8. Provide installation video guidance and after-sales support.

See a Real Water Park Project

Want to see how a similar water attraction project works in a real site? View our Xuyi water park case study to see installed attractions, pool layout and seasonal operation setup.

Request a Project Quote

Send us your water area type, available size, water depth, country, target age group, preferred modules and opening schedule. If you do not have a natural water area, tell us your land size and expected capacity so we can evaluate a support-frame pool and floating aqua park package together.
